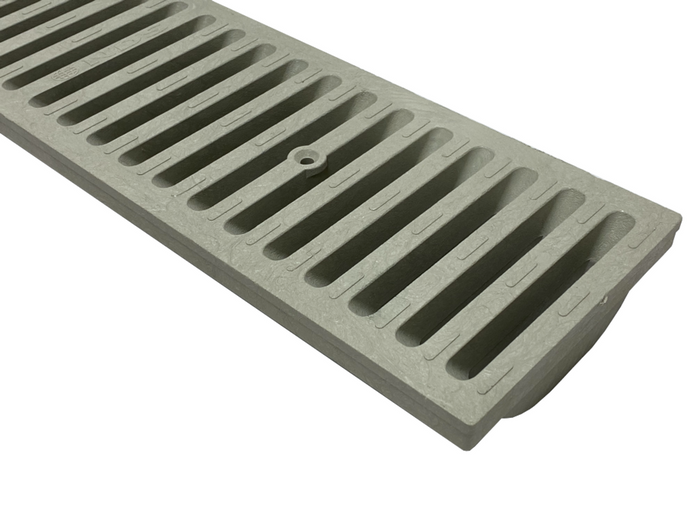

NDS - 661LG - 2' Dura Slope Plastic Channel Grate, Light Gray

NDS - 661LG - 2' Dura Slope Plastic Channel Grate, Light Gray

$54.36 USD
$81.13 USD $54.36 USD
Sale Sold out
Shipping calculated at checkout.
2' Dura-Slope Channel Grate, Light Gray
  • Use with Dura Slope Channel Drains and Dura Slope Catch Basins #DS-340
    • (2) Grates required per Dura Slope Channel Drain.
    • (1) Grate required per Dura Slope Catch Basin
  • Requires 2 Screws Per Grate #629 (Not Included - If purchasing with a Dura-Slope drain or catch basin, then the screws will come preinstalled with the Dura-Slope.)
Specifications
Product type: Grates
Material: UV Protected High Density Polyethylene (HDPE)
Color: Light Gray

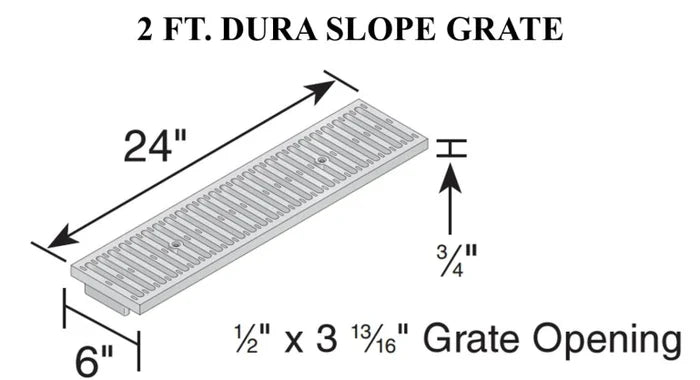

Length: 24 in.
Width: 6 in.
Height: 0.75 in.
Weight: 2.82 lb
ADA: Yes
Load Rating: Class B
  • Loads of 61-175 psi.
  • Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.
Style: Flat
Capacity: 27 GPM per foot with 1/2'' of head.
Grate Opening: 1/2'' x 3-13/16''

Downloads
  • 2 Ft. Dura Slope Grate Spec Sheet
  • Dura Slope Installation Manual
  • Dura Slope Quick Start Guide
