NDS - 78 - 4" Round Atrium Grate, Black
NDS - 78 - 4" Round Atrium Grate, Black
Regular price
$12.96 USD
Regular price
$17.51 USD
Sale price
$12.96 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
4'' Round Atrium Grate

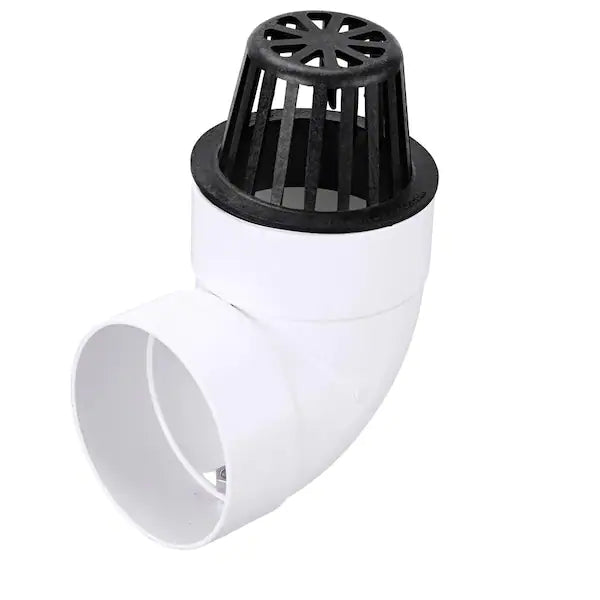

- Fits: 4" Sewer and Drain Pipe and Fittings, 4" Corrugated Pipe, and 4" Triple Wall Pipe

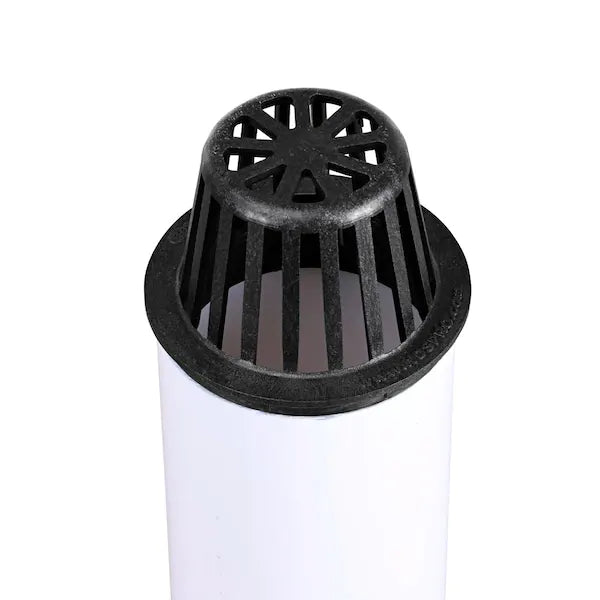

- Place on top of drain pipe or drain fitting for a soil-tight fit
- Ideal for draining light water flows from planter beds, mulch areas, window wells, and areas prone to debris collection; where debris like mulch and leaves might clog a flat grate.
- Unlike a flat grate that lies flush with the surface, the 4 in. Atrium Grate has a raised dome design that blocks leaves, mulch, and other debris near the base, while continuously allowing water to flow through the top.
Use to drain excess water and direct it to a more water safe area such as a curb or gutter. Atrium grates are ideal for planter beds, mulch areas, window wells, and areas prone to debris collection. Can be used with 4" sewer and drain pipe and fittings, 4" corrugated pipe and 4" Triple Wall pipe. Open surface area 17.0 sq. in.
General
Product type: Grates
Material: HDPE
Color: Black

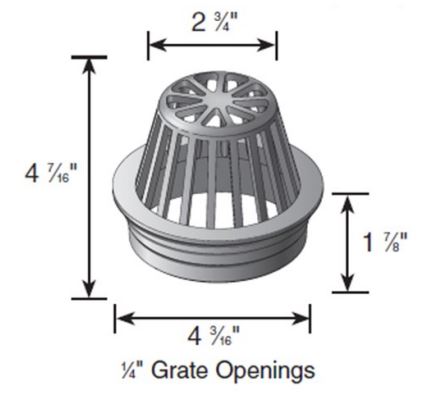

Length: 2.75 in.
Width: 2.75 in.
Height: 4-7/16 in.
Weight: 0.21 lb
Style: Atrium
Capacity: 52.01 GPM
Grate Opening: 1/4''
Downloads
- 4'' Atrium Grate Spec Sheet
